產品中心 嵌入式電腦 模組化電腦 COM Express PCOM-B217VG

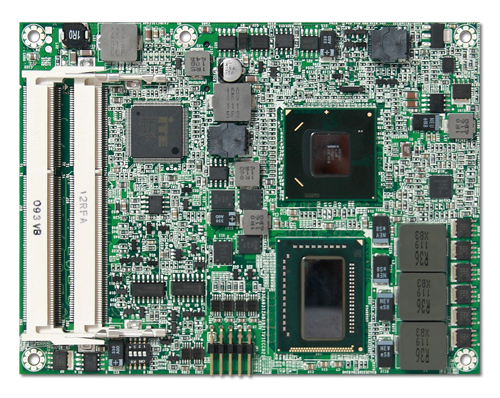

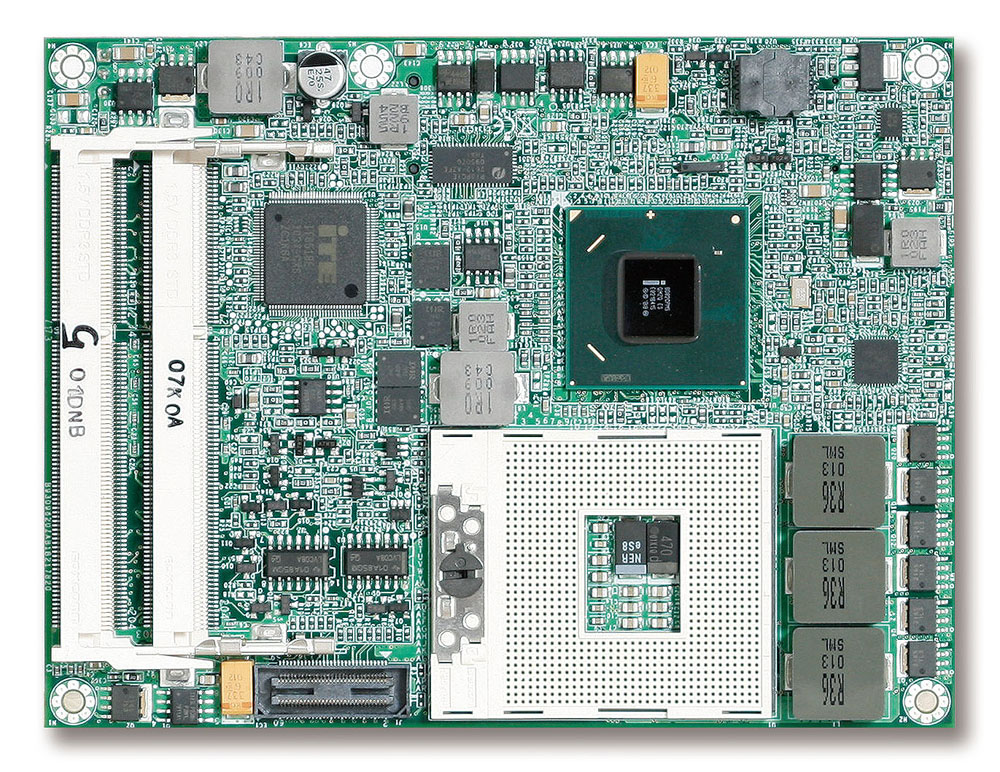

PCOM-B217VG Intel® Sandy Bridge Mobile based Type II COM Express with DDR3 SDRAM, VGA, LVDS, Gigabit Ethernet, 6Gbps SATA, IDE and USB     訂購指南 放大產品圖 下載列表 型錄(PDF)   Portwell PCOM-B217VG is designed with latest Intel® QM67 chipset to offer high computing power by Intel's second generation Quad Core™/Dual Core™ processor with turbo-boost, SOL, IDER, serial over LAN, iAMT 7.0 remote control which offer high speed and accurate responses suitable for medical healthcare systems, military seeker or fiber-optic data communication link purposes 產品特色 The Intel® Sandy Bridge Core™ i7-2715QE (Quad Core) / Core i5-2655LE (Duo core) Core i7-6210UE (Quad Core) / i5-2515E and QM67 platform that provide higher performance Support faster I/O interfaces on seven PCI Express lanes (four x1 lanes can be configured to one x4 lane) Support four SATA ports include two 6Gbps ports and two 3Gbps ports Power sharing technology between CPU and Graphics engine to maximize performance DP (Display Port), HDMI, DVI supported 訂購資訊 標準品 AB1-3595 PCOM-B217VG.TYPE II. Basic Form Factor.COM Express Module SandyBridge-mbl (PGA type)

產品洽詢服務

• Specifications are subject to change without notice.
• Pentium^® 4, Pentium^® III, Pentium^® II and Celeron^® are registered trademarks of Intel^® Corporation.
• Xeon™ is a trademark of Intel^® Corporation.
• Other trademarks, logos, brands and company names are the property of their respective owners.
