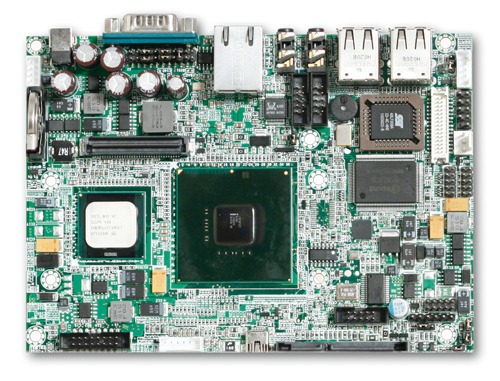

PEB-2739I takes advange of the latest Intel® Atom™ technologies. It supportS DDR2 SDRAM, one gigabit ethernet and one expansion Multi function connector. Base on leading Intel® Atom™ solution, PEB-2739I performs low power dissipation, high performance and fanless requirement. Therefore, it's applied to Panel PC, Kiosk, Medical and industrial automation.
產品特色
Intel® Atom™ processor Z500PT series and System
Controller Hub US15WPT
One 200-pin SO-DIMM support DDR2 SDRAM
up to 2GB
Dual independent display: SDVO(by VGA/DVI/LVDS daughter card) and 24bit LVDS
One Gigabit Ethernet
TPM (Trusted Platform Module) could be added on board (optional)
Customization (Extension card): BTB connector with SDVO/USB/PCI-E x1 signal and SDIO pin header
Storage: One SATA / One CompactFlash / One USB Flash / One SDIO
