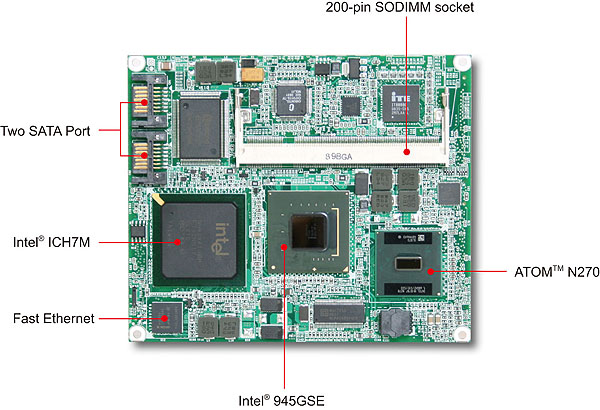

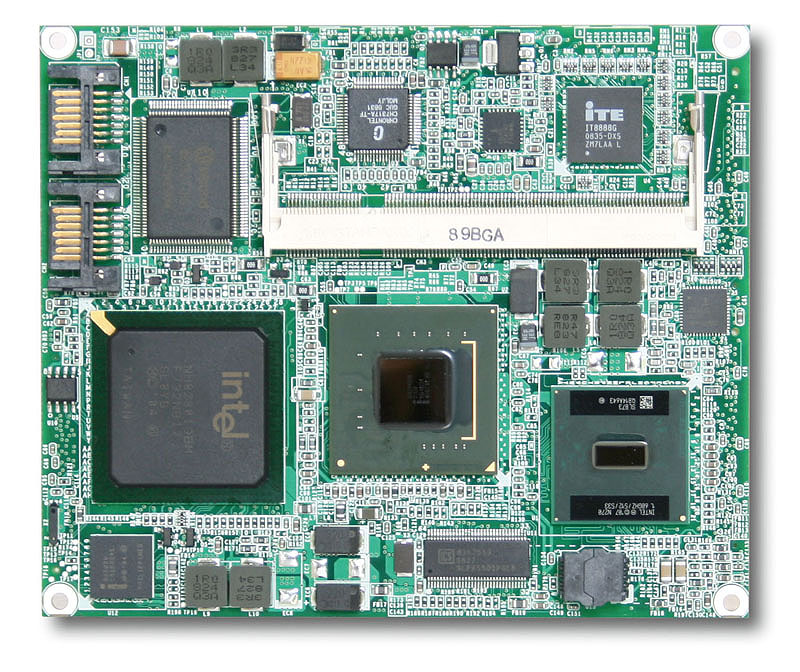

Portwell PEM-E200VLA is designed with Intel® N270 1.6 GHz processor with 945GSE and
ICH7 chipset, with less then 10W overall TDP and dual 24bit LVDS support it is suitable for supermarket, health and
industrial weighing scale applications which nowadays equipped with dual screen. For addition requirement the
application will also require serial and USB ports to connect to thermal printer, barcode scanner to do self service
while using weighing scale.
產品特色
The Intel® Atom™ N270 and 945GSE
platform that provides cost effective solution
and technology
The Intel® platform brings under 10W TDP
solution for easy fan-less design
SATA and IDE interface provide best cost
effective functions for market
Architecture of module and carrier boards
speeds up time-to-market of tailor-made
equipment
Support one SODIMM socket and up to 2GB
memory size
