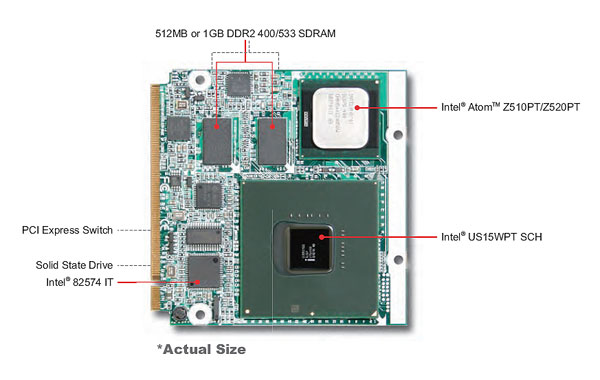

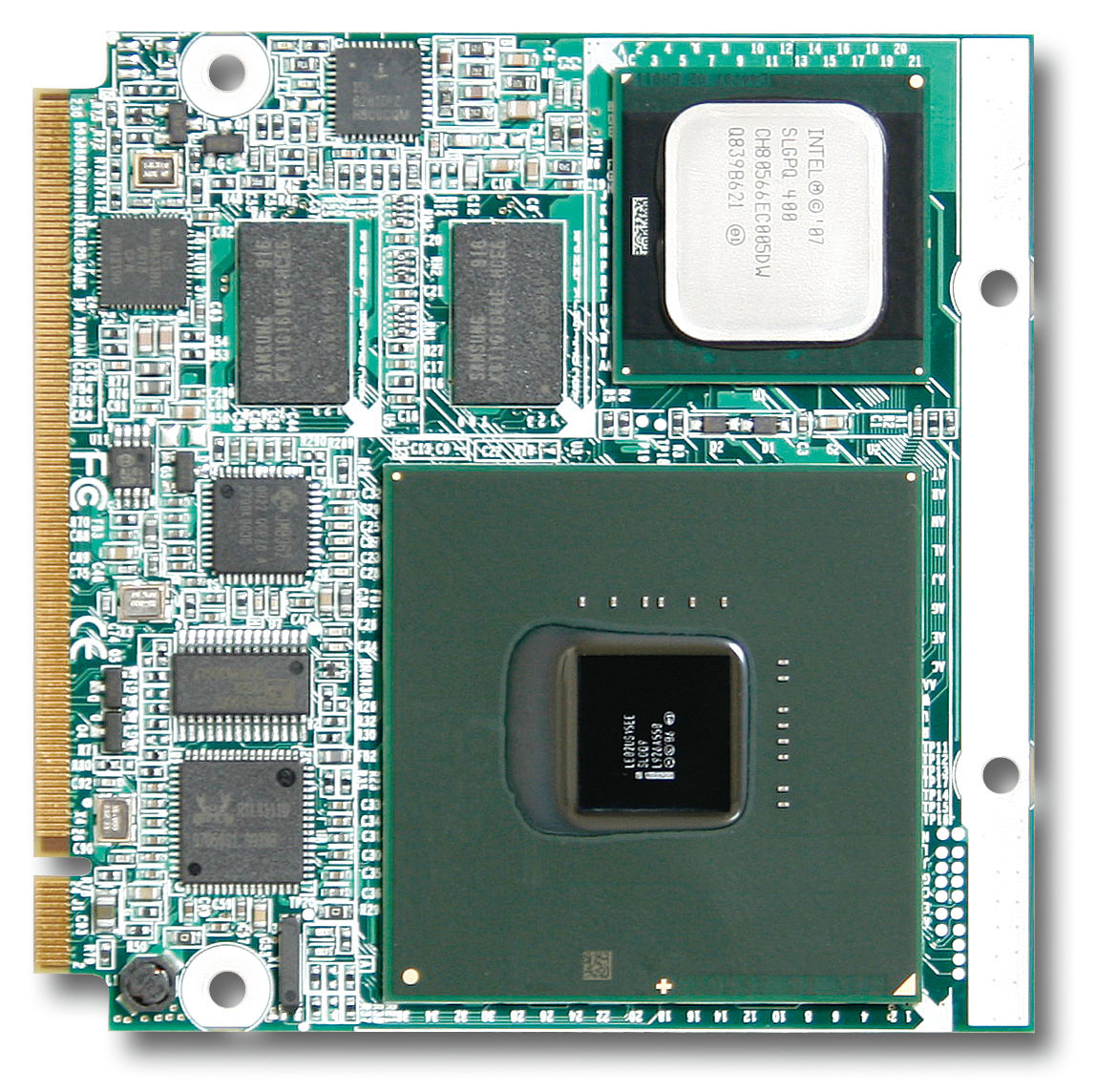

Portwell PQ7-M103XL is designed with Intel's ultra low power US15WPT chipset which features
less then 5W overall power consumption, -40~85 degree wide temperature support and on board SSD. It is suitable for
mission critical application such as wind powered generators which are generally located at remote locations that
required t to stand for extraordinary high or low temperature environment, and vibration from spinning blades.
產品特色
Atom™Z510PT(1.1GHZ) or Z520PT(1.33GHZ)
Intel® US15WPT integrated GMA 500
Graphic
Ultra Low CPU and SCH TDP (Under 5W)
for fan-less application
LVDS and SDVO interface for dual
independent display
Full Hardware acceleration of H.264,
MPEG2, VC1 and WMV9 is supported
On board DDR2 supported up 1GB
4Mbit flash ROM for easy BIOS upgrade
and video BIOS for DFP
