產品中心 嵌入式電腦 模組化電腦 Qseven PQ7-M105IT

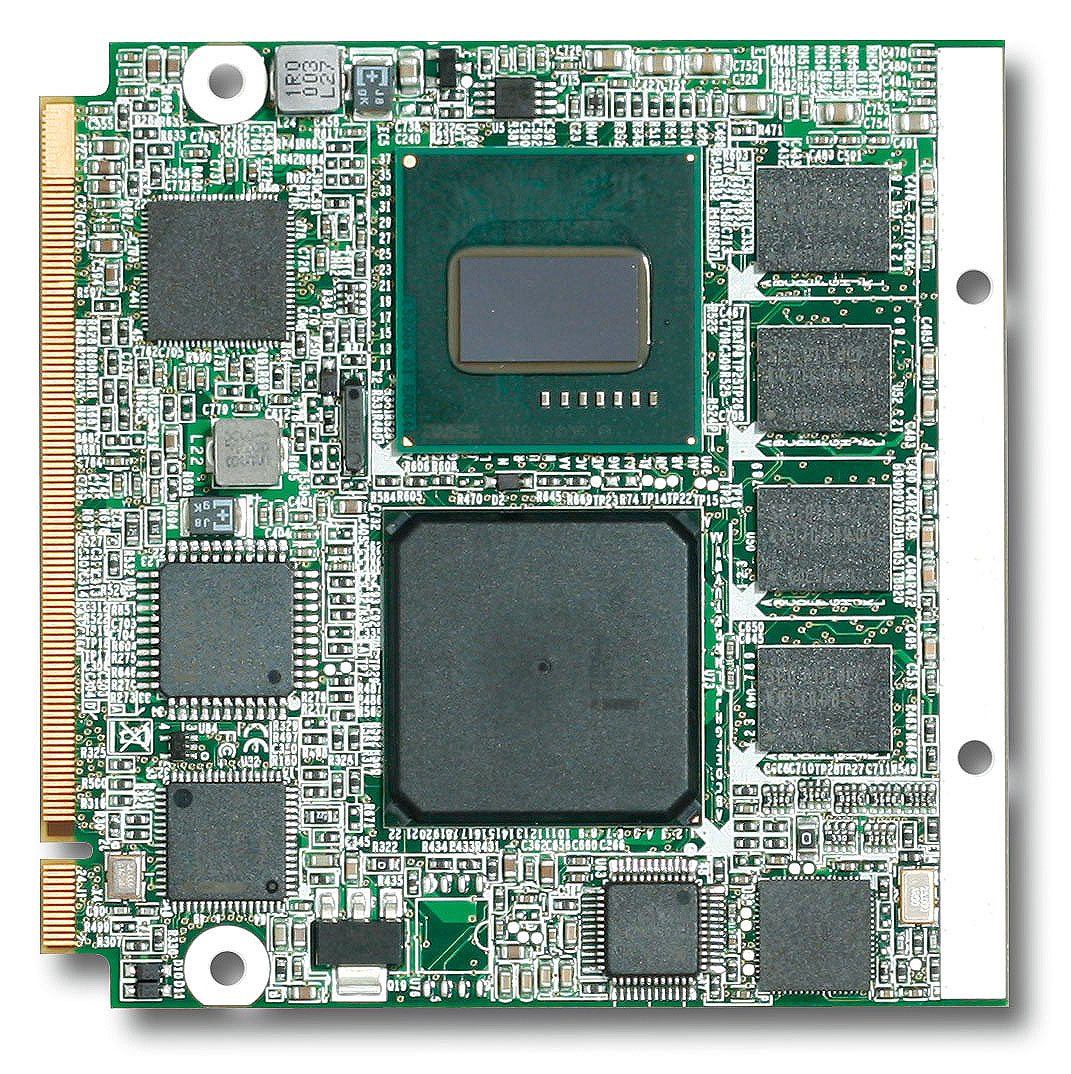

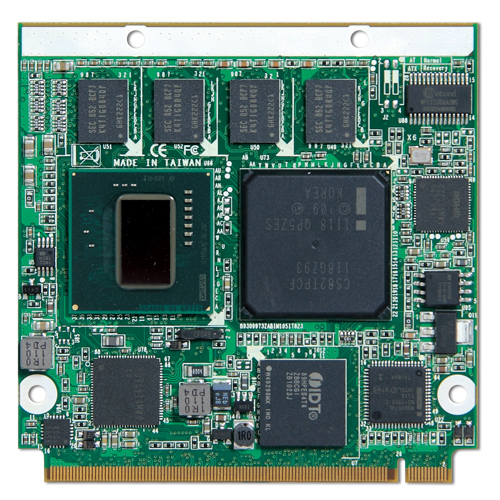

PQ7-M105IT Qseven module based on Intel® Atom™ E620T / E640T / E660T / E680T platform with DDR2 SDRAM, four PCI Express lanes, 24bit LVDS, SDVO,CAN bus, NANDrive     訂購指南 放大產品圖 下載列表 型錄(PDF)   Portwell PQ7-M105IT is designed with Intel's ultra low power E600 series CPU and EG20T IOH. With less then 5W power consumption and -40~85 extended temperature support, it can cover the critical concern of Aerospace application which require extended temperature capability and flexible communication I/O interfaces. 產品特色 Atom™ ultra low power CPU (E620T E640T / E660T / E680T) and IOH (EG20T) total TDP is under 5W fan-less application Full Hardware acceleration of H.264, MPEG2/4, VC1 and WMV9 supported On board 512MB DDR2 supported up to 2GB Four PCI Express lanes supported CAN Bus interface supported SATA 4GB Solid State Drive, onboard (optional) Trusted Platform Module 1.2, onboard (optional) 訂購資訊 標準品 AB1-3547Z PQ7-M105IT-C1300-1024 AB1-3628Z PQ7-M105IT-0600-0512 AB1-3629Z PQ7-M105IT-1000-1024 AB1-3630Z PQ7-M105IT-1600-1024
