產品中心 工業電腦 工業單板電腦 PICMG 1.3 ROBO-8110VG2AR

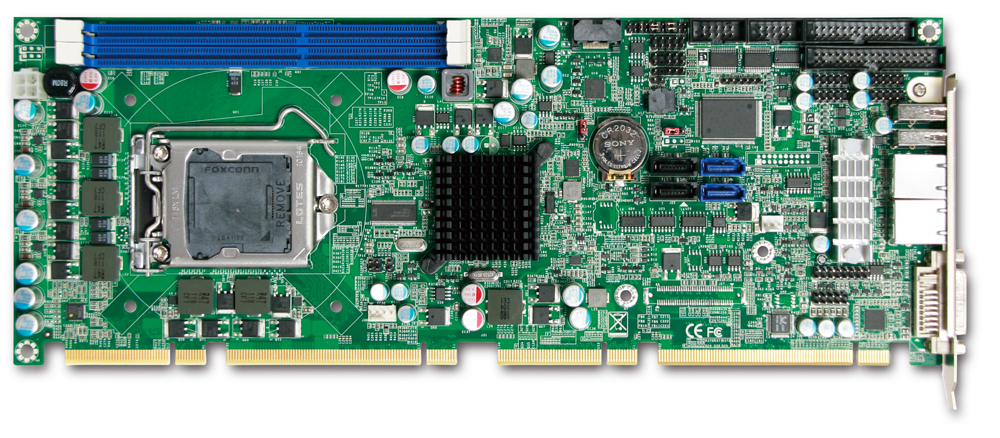

ROBO-8110VG2AR Intel® Xeon® and Core™ i3 processor based on PICMG 1.3 SHB with DDR3 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB     訂購指南 放大產品圖 下載列表 型錄(PDF)   ROBO-8110VG2AR is based on Intel® C206 chipset and workstation processor sku like Xeon® and Core™ i3. Build with flexible PCI express expansion, it‘s suitable for medical, Industrial automation, and digital signage applications. 產品特色 Support Intel® Xeon® E3-1200 series and Core™ i3 processors in LGA 1155 package Delivers up to 16GB maximum DDR3 1333/1066 ECC SDRAM on two DIMM sockets Support multiple display by DVI-I (DVI-D + VGA) and HDMI Support iAMT 7.0 on Xeon® E3-1200 series processors High speed dual Gigabit Ethernet based on PCI Express x1, high bandwidth I/O interface Rich I/O connections such as FDD, two Gigabit Ethernet, serial ports, parallel port, USB 2.0 On-board two SATA 300 and two SATA 600 ports support RAID 0,1,5,10 附件列表 ROBO-8110VG2AR 標準附件 SATA II cable Qty. x 1 SATA III cable (Black) Qty. x 1 cable kit for FDD+PRN with bracket Qty. x 1 dual head COM port cable with bracket Qty. x 1 DVI-D + VGA cable with bracket Qty. x 1 PICMG SBC Handling and Installation Notice Qty. x 1 訂購資訊 標準品 AB1-3600 ROBO-8110VG2AR PICMG 1.3(PCI-E+PCI).LGA1155.Core 2 Quad. SHB.w/VGA/Dual GbE/Audio 選配 PA-M1AU Multimedia kit with audio and USB ports PS/2 Keyboard/Mouse Cable with Bracket PS/2 keyboard/mouse connectors on bracket USB cable with bracket Two USB ports with bracket

產品洽詢服務

• Specifications are subject to change without notice.
• Pentium^® 4, Pentium^® III, Pentium^® II and Celeron^® are registered trademarks of Intel^® Corporation.
• Xeon™ is a trademark of Intel^® Corporation.
• Other trademarks, logos, brands and company names are the property of their respective owners.
