產品中心 工業電腦 工業單板電腦 PICMG 1.3 ROBO-8120VG2R

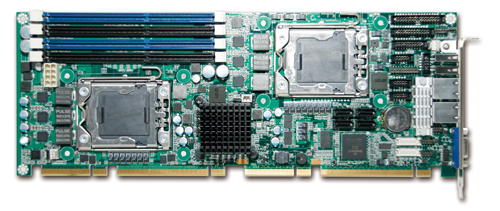

ROBO-8120VG2R Intel® Xeon® C5500/C3500 series processor based on PICMG 1.3 SHB with DDR3 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB     訂購指南 放大產品圖 下載列表 型錄(PDF)   ROBO-8120VG2R is based on Intel® 3420 chipset and dual Xeon® processors. It‘s a server grade SHB built with high computing power and flexible PCI express expansion support, it‘s suitable for military, industrial automation, and digital signage applications. 產品特色 Support Intel® Dual/Quad Core™ Xeon® processors with LGA 1366 package Delivers up to 32 GB DDR3 maximum ECC registered memory assured the computer reliability and benefited the data swapping process Adopt XGI Z11 graphic engine offers solid 2D performance Support VGA display on bracket and optional 2nd VGA or DVI-D interface Rich & powerful I/O expansion covers PCIE Gen 2.0 for one PCI Express x16 or two PCI Express x 8 or four PCI Express x4 High speed dual Gigabit Ethernet based on PCI Express x1 interface provides Wake-On-LAN function Rich I/O connectors such as FDD, two Gigabit Ethernet, serial ports, parallel port, USB 2.0, and SATA ports 附件列表 ROBO-8120VG2R 標準附件 cable kit for 1 serial + 1 parallel port w/ bracket Qty. x 1 FDD Cable Qty. x 1 SATA II cable Qty. x 1 PICMG SBC Handling and Installation Notice Qty. x 1 Installation CD Qty. x 1 single processor cooler Qty. x 1 訂購資訊 標準品 AB1-3479 ROBO-8120VG2R PICMG 1.3(PCI-E+PCI).LGA1366.Jasper Forest Single/Dual/Quad Core™ processors.SHB.w/VGA/ Dual GbE 選配 PS/2 Keyboard/Mouse Cable with Bracket PS/2 keyboard/mouse connectors on bracket USB cable with bracket Two USB ports with bracket DVI-D+ VGA cable with bracket One port DVI-D + one port VGA cable with bracket
