產品中心 工業電腦 工業單板電腦 PICMG 1.0 ROBO-8718VG2A

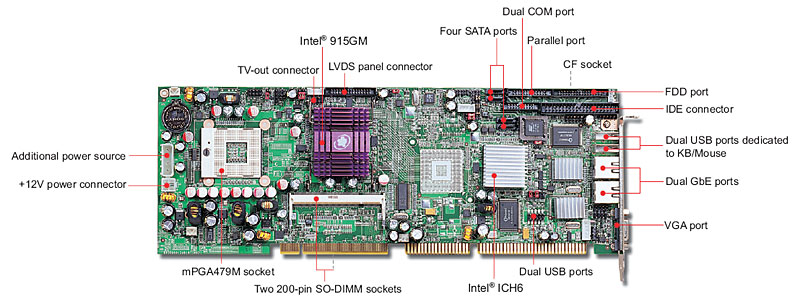

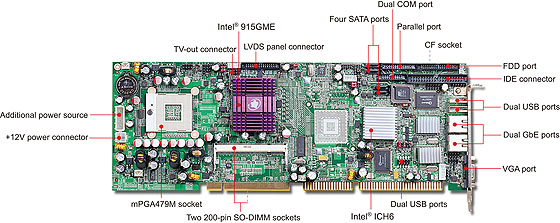

ROBO-8718VG2A Intel® Pentium® M or Celeron ® M processor based PICMG SBC with DDR2 533 SDRAM, VGA, Dual Gigabit Ethernet and Audio     訂購指南 放大產品圖 下載列表 型錄(PDF)   產品特色 ROBO-8718 offers flexible 400MHz and 533MHz FSB selection of Intel® Pentium® M / Celeron® M that features high computing power with low heat Scalable graphics support from Intel® 915GM featuring GMA 900 to ATI M22 graphics controller integrated 64MB display memory via PCI Express x16 ATI M22 graphics support dual display configuration of LCD/CRT, TV/ CRT, LCD/LCD, LCD/TV displays High speed dual Gigabit Ethernet based on PCI Express x1, high bandwidth I/O interface Four SATA 150 ports for high speed storage interface and easy cable routing 附件列表 ROBO-8718VG2A 標準附件 FDD Cable Qty. x 1 SATA cable Qty. x 2 Cable Assy 4F-4F 1007#26 400mm Qty. x 1 PRN Cable with Bracket Qty. x 1 IDE Cable ULTRA ATA/66 Qty. x 1 CPU Cooler Qty. x 1 Dual Serial Port Cable w/Bracket Qty. x 1 Utility CD Driver with user's manual Qty. x 1 訂購資訊 標準品 ROBO-8718VG2A Socket mPGA479M Pentium® M or Celeron® M processor based PICMG SBC with DDR2 533 SDRAM, VGA, Dual Gigabit Ethernet and Audio 選配 PA-M1AU Multimedia kit for P4 SBC with audio and USB ports DVI-D Cable TMDS adapter cable for DVI interface flat panel

產品洽詢服務

• Specifications are subject to change without notice.
• Pentium^® 4, Pentium^® III, Pentium^® II and Celeron^® are registered trademarks of Intel^® Corporation.
• Xeon™ is a trademark of Intel^® Corporation.
• Other trademarks, logos, brands and company names are the property of their respective owners.
