產品中心 工業電腦 工業單板電腦 PICMG 1.0 ROBO-8719VG2AR

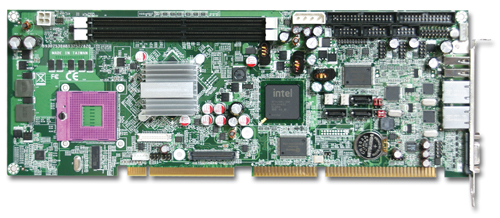

ROBO-8719VG2AR Intel® latest 45nm Core™ 2 Duo or Celeron® M processor based on PICMG SBC with DDR2 SDRAM, VGA, Dual Gigabit Ethernet and Audio     訂購指南 放大產品圖 下載列表 型錄(PDF)   ROBO-8719VG2AR is based on GM45 and ICH9ME chipset, supporting mobile processors up to Core™ 2 Quad sku. It’s the ideal solution for medical, industrial automation and kiosk applications. 產品特色 ROBO-8719VG2AR offers flexible FSB up to 1066MHz selection of Intel® 45nm Mobile Core™ 2 Quad,Core™ 2 Duo or Celeron® M processor that features high computing power with low heat Integrated 5th generation graphic engine Mobile Intel® GMA 4500MHD built with max. graphics core speeds up to 533MHz to improve graphics and 3D rendering performance Support two on-board display output options, including VGA and 24-bit LVDS for flexible display choice. An optional DVI-D output card support via board to board SDVO connector by project Support integrated Intel® Trusted Platform Module (iTPM) for more secure plateforms 附件列表 ROBO-8719VG2AR 標準附件 FDD Cable Qty. x 1 PRN cable Qty. x 1 SATA II cable Qty. x 1 serial port cable Qty. x 1 Cable Assy 4F-4F Qty. x 1 Installation CD Qty. x 1 CPU cooler(up to 35W) Qty. x 1 訂購資訊 標準品 AB1-3252 ROBO-8719VG2AR PICMG 1.0(PCI+ISA).Socket mPGA479M. SBC.w/VGA/Dual GbE/Audio 選配 PA-M1AU Multimedia kit with audio and USB ports PS/2 Keyboard/Mouse Cable with Bracket PS/2 keyboard/mouse connectors on bracket PA-G1D DVI output card via board to board SDVO connector

產品洽詢服務
