產品中心 嵌入式電腦 嵌入式系統 Mini-ITX WEBS-3332

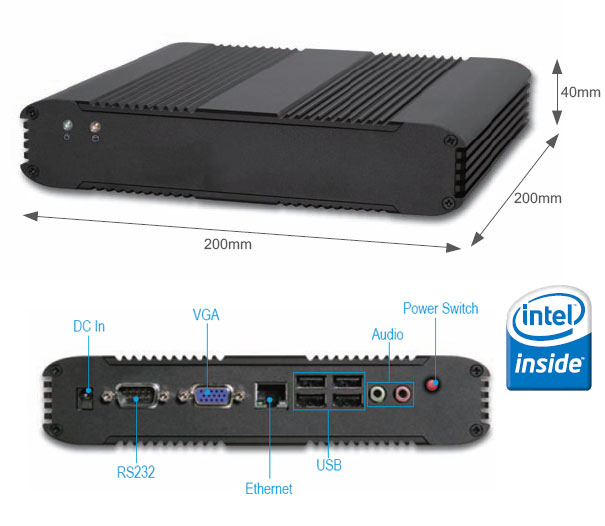

WEBS-3332 Embedded rugged fan-less system with Intel® Atom™ N270 based Mini-ITX board     訂購指南 放大產品圖 下載列表 型錄(PDF)   產品特色 Intel® Atom™ N270 1.6GHz processor and Intel® 945GSE+ ICH7-M chipset 40mm height supports thin client and DS application Analog Display: Up to 2048 × 1536 (QXGA) Rugged and slim design is ideal for environment critical application Fan-less and optional cable-less design for easy maintenance Vesatile mounting solutions such as Wall and Panel mount (Optional) Vibration test (5grms/5~500Hz/operation) Shock test (50g peak acceleration - 11 msec. duration) OP Vibration: 5Grms/5~500Hz OP Shock:50G, 11 msec. IP40 Rating 關聯性產品 M/B WADE-8071 訂購資訊 標準品 WEBS-3332-1600 System with WADE-8071 (Atom™ N270 1.6GHz) + 2GB DDR2 + 4GB CF WEBS-3332-1601 System with WADE-8071 (Atom™ N270 1.6GHz) + 1GB DDR2 + 512MB CF

產品洽詢服務

• Specifications are subject to change without notice.
• Pentium^® 4, Pentium^® III, Pentium^® II and Celeron^® are registered trademarks of Intel^® Corporation.
• Xeon™ is a trademark of Intel^® Corporation.
• Other trademarks, logos, brands and company names are the property of their respective owners.
