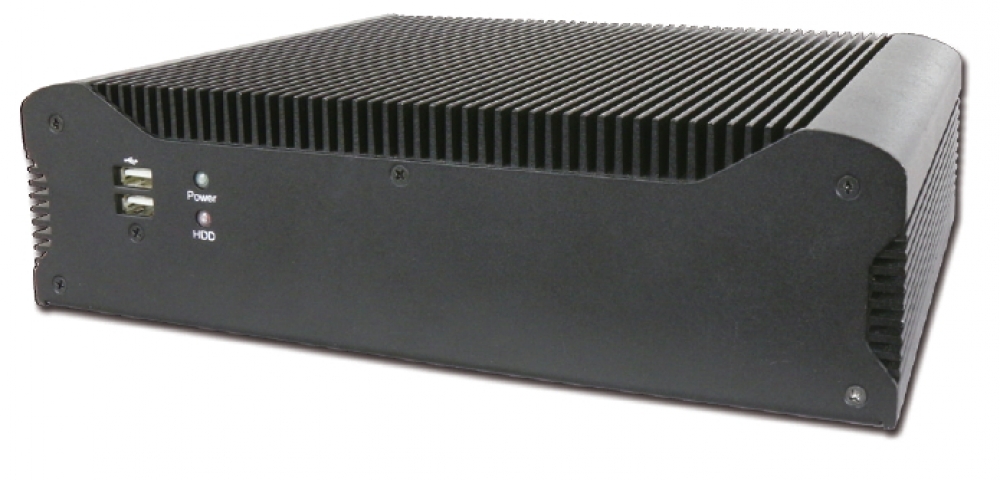

WEBS-3560B
|
Embedded rugged fan-less system with Intel® i7/i5 based MINI-ITX board
|
- Intel® Core™ i5/i7 processor(Quad-Core CPU support)
- Intel® QM57 Chipset
- Two 204-pin SO-DIMMs DDR3 up to 8GB,
support dual channel
- One Mini-PCIe socket(with USB + PCIE × 1 signal)
- 1 SATA port, 2 GbE, 3 RS232 + 1 RS232/422/485
- Dual Display by VGA/DVI/HDMI
- Intel® Active Management Technology (Intel® AMT) 6.0
- Fan-less and optional cable-less design for easy maintence
- Rugged design is good for using in harsh
environment
- Vesatile mounting solutions such as Wall and Panel mount (Optional)
- OP Vibration: 5Grms/5~500Hz
|
|
|
- Specifications are subject to change without notice.
